- Aqua-Air Wet/Dry Central Vacuums

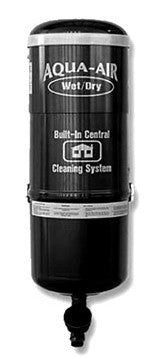

- AA003 - Model 150 Heavy Duty Central Vacuum Unit & Wet Extractor
Call for Pricing
CALL FOR QUOTE!
UNIT: One piece made of rustproof, color proof, shock proof, fire retardant, A.B.S. Lustran, 35 cm x 120 cm (14" x 47")
VACUUM MOTORS: Amtek-Lamb 14 Amp., Commercial Extractor model 117-500-13. 3 stage, 7.2" dia.
FACTORY RATING: 145" water lift, 102 CFM
RECOVERY TANK: The cyclonic separator and cold water spray separate the water, foam and debris from the air flow without restrictive filters or mechanical floats. Large debris is contained in a mesh screen while the liquids automatically dump down the drain.
ELECTRICAL: 120 volt, 60 hertz, 15 amp standard plug
WATER: Cold water with shut-off. Hot water (up to 170°F [77°C]) with shut-off. Connect directly to water outlets or to optional cleaning solution injector (AA031 or AA033).
DRAIN: 2" DWV drain to sewer. A p-trap will be required and vent to meet plumbing codes.
EXHAUST: If power unit is located in a small room, exhaust air from the vacuum motor must be exhausted to the outside of the building using the most direct route possible.
POWER UNIT: Locate in an area where it will be protected from freezing. The mounting bracket should be firmly attached to a wall stud or masonry wall. A minimum space of 12" is required from the ceiling and on each side of the unit. The unit must be mounted high enough above the floor as to allow for drain connection and easy access to service the debris screen.
Vacuum inlets are conveniently located near doorways, in hallways or other centrally located areas. The vacuum lines are regular 2" PVC vacuum tubing and fittings.
WATER OUTLETS: Water Outlets are located next to the vacuum inlets. (In existing structures where access is limited the outlets may be located under sinks or on other wall where access is possible. The water lines may be either 3/8" or 1/2" PEX, 3/8" copper or other equivalent tubing appropriate for the building with connections made in accessible areas.
COMMERCIAL LIMITED WARRANTY: The manufacturer warrants to the initial purchaser that the AQUA-AIR Wet/Dry° power unit and cleaning solution injector will be free from defects in material and workmanship for one (1) year from the date of the first consumer purchase or one thousand (1000) hours whichever occur first, and that hoses, tools and other attachments will be free from defects in material and workmanship for ninety (90) days from the date of the first purchase.
